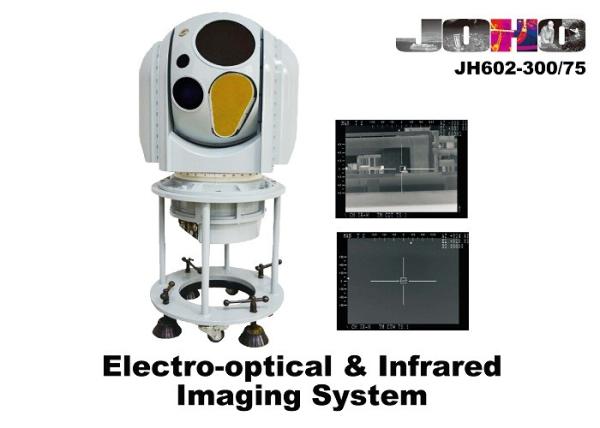

JH602-300/75 EOTS Multi Sensor Electro-Optical Search and Tracking System
Description:
Equipped with a high performance MWIR cooled HgCdTe thermal camera( optional 640×512 higher resolution), continuous zoom TV camera and laser range finder, JH602-300/75 is capable of searching target at day/night, as well as recognition, tracking, ranging and aiming target, real-time output target position and distance data for navigation and early warning.
Application:
Applied on various mobile carrier ( aircraft, ship, vehicle,etc) for target searching,stable observation, aiming control, navigation, tracking and air early warning.
Functions:
1. Isolate carrier (ship) disturbance, stabilized the LOS (line of sight)
2. Observation, search, aiming and ranging target at day and night
3. Detection, recognition and identification on specified target at day and night
4. Manual/auto tracking target
5.Receiving target designation from Radar under slaving mode
Specifications:
| THERMAL CAMERA | | Detector | cooled HgCdTe FPA | | Pixel | 320*256 ( optional 640*512 higher resolution) | | Spectral band | 3.7μm~4.8μm | | FOV | WFOV:7.3°× 5.8° NFOV: 1.8°× 1.4° | | FOV switching time | ≤ 1s | | Electronic zoom | 2× | | DAY LIGHT CAMERA | | Detector | 752*582, 1/3" white/black CCD | | FOV | 18°*13.5°~1°*0.75° continuous zoom | | LASER RANGE FINDER | | Wavelength | 1.06μm | | Ranging | 300m~20km (visibility 23km, 15m*10m target) | | Measurement accuracy | ≤ ± 5m | | SERVO | | Stabilization accuracy | ≤ 0.2mrad (1σ) | | Turret direction range | Azimuth: ± 160° (0°is bow direction); Pitch: -20°~+75° | | TURRET MAXIMUM ANGLE SPEED | | Azimuth | ≥50°/s | | Pitch | ≥50°/s | | Video signal format | CCIR PAL standard B/W | | Communication | RS422/RS232 | | ENVIRONMENTAL | | Operating temperature range | -40℃ ~ +50℃ | | Storage temperature range | -50℃ ~ +70℃ | | POWER | | Power Supply | DC 24V/15A, DC28V/20A | | Power Consumption | DC24/96W (avg.)/240W (Max.) DC28V/28W(avg.)/70W (Max.) | | PHYSICAL | | Dimension Turret | ≤ Φ400× 750 | | Control box | 500 mm X 230 mm X 87 mm | | Turret Weight | ≤ 120kg (including mobile base) | | Control box Weight | ≤ 5kg | |
